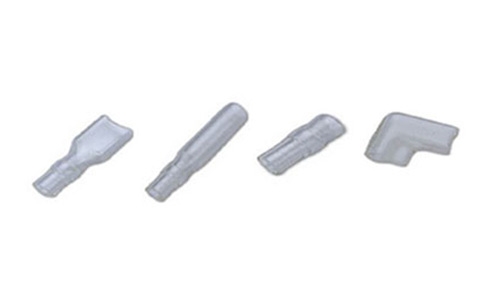

PVC絕緣公端,母端,旗型套管

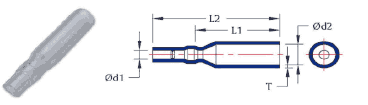

| ITEM NO. | DRAWINGS | Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|---|---|
| L1 | L2 | W1 | W2 | Ød1 | Ød2 | T | ||

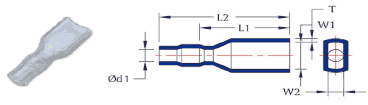

| P-D1028F |  |
14.6 | 22.0 | 4.0 | 2.1 | 2.5 | 1.0 | |

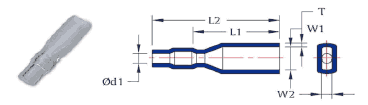

| P-D2048F |  |
14.0 | 22.0 | 5.8 | 2.6 | 3.0 | 1.0 | |

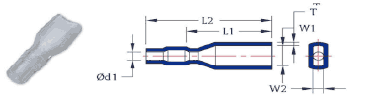

| P-D2063F |  |
17.0 | 27.0 | 7.8 | 3.5 | 3.5 | 1.0 | |

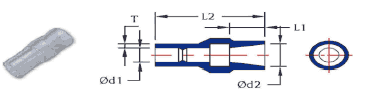

| P-D2063M |  |
16.0 | 26.0 | 9.5 | 5.0 | 3.5 | 1.0 | |

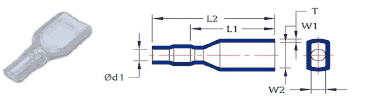

| P-D5063F |  |
17.0 | 27.0 | 8.0 | 3.6 | 4.1 | 1.0 | |

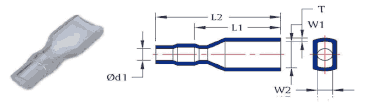

| P-G2040F |  |
23.0 | 33.0 | 3.2 | 5.0 | 1.0 | ||
| P-G2040M |  |
4.5 | 15.0 | 3.0 | 4.1 | 1.0 | ||

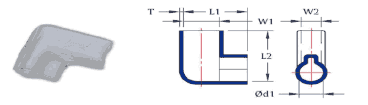

| P-FL250F-R |  |
16.0 | 18.0 | 9.0 | 4.0 | 4.0 | 1.0 | |
