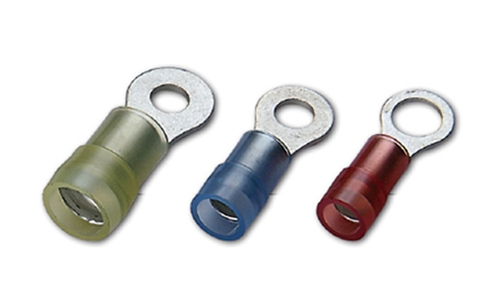

尼龍絕緣圓型端子(易進式銅管)
  • 尼龍絕緣圓型端子(易進式銅管)
尼龍絕緣圓型端子(易進式銅管)
尼龍絕緣圓型端子(易進式銅管)

尼龍絕緣圓型端子(易進式銅管)

產品描述
  • 編號：ENR1-3C〜ENR5-12C
  • 絕緣材料：尼龍
  • 端子材質：銅
  • 套管：銅套
  • 電鍍：錫
詢價
Nylon Insulated Ring Terminals(Double Crimp)
WIRE RANGE
A.W.G. mm²		ITEM
NO.		Stud SizeDimensions (mm)
AmericanMetricØd2BFLHØdØDT
22-16
A.W.G.

0.5-1.5  mm²		 ENR1-3C #4 3.0 3.2 5.5 4.8 18.5 11.0 1.7 4.5 0.75
ENR1-3.5SC #6 3.5 3.7 5.5 4.8 18.5
ENR1-3.5C #6 3.5 3.7 6.6 6.3 20.1
ENR1-4SC #8 4.0 4.3 6.6 6.3 20.1
ENR1-4C #8 4.0 4.3 8.0 7.0 22.0
ENR1-5C #10 5.0 5.3 8.0 7.0 22.0
ENR1-6C 1/4 6.0 6.4 11.6 11.1 27.9
ENR1-8C 5/16 8.0 8.4 11.6 11.1 27.9
ENR1-10C 3/8 10.0 10.5 13.6 13.9 31.7
ENR1-12C 1/2 12.0 13.0 19.0 16.0 36.6
16-14
A.W.G.


1.5-2.5  mm²		 ENR2-3C #4 3.0 3.2 6.6 4.3 18.6 11.0 2.3 5.0 0.8
ENR2-3.5SC #6 3.5 3.7 6.6 4.3 18.6
ENR2-3.5C #6 3.5 3.7 6.6 6.3 20.6
ENR2-4SC #8 4.0 4.3 6.6 6.3 20.6
ENR2-4C #8 4.0 4.3 8.5 7.8 23.0
ENR2-5SC #10 5.0 5.3 8.5 7.8 23.0
ENR2-5C #10 5.0 5.3 9.5 7.3 23.0
ENR2-6C 1/4 6.0 6.4 12.0 11.0 28.0
ENR2-8C 5/16 8.0 8.4 12.0 11.0 28.0
ENR2-10C 3/8 10.0 10.5 13.6 13.9 31.7
ENR2-12C 1/2 12.0 13.0 19.0 16.0 36.6
 12-10
A.W.G.

4-6  mm²		 ENR5-3.5C #6 3.5 3.7 7.2 5.9 22.5 13.0 3.4 6.7 1.0
ENR5-4SC #8 4.0 4.3 7.2 5.9 22.5
ENR5-4C #8 4.0 4.3 9.5 8.3 26.0
ENR5-5C #10 5.0 5.3 9.5 8.3 26.0
ENR5-6C 1/4 6.0 6.4 12.0 10.5 29.5
ENR5-8C 5/16 8.0 8.4 15.0 13.7 34.2
ENR5-10C 3/8 10.0 10.5 15.0 13.7 34.2
ENR5-12C 1/2 12.0 13.0 19.2 16.0 38.6
