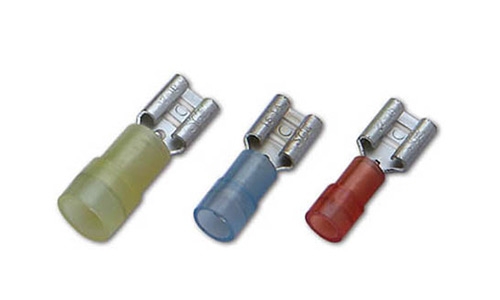

尼龍絕緣平插式(半包)母端連接器(易進式銅管)
  • 尼龍絕緣平插式(半包)母端連接器(易進式銅管)
尼龍絕緣平插式(半包)母端連接器(易進式銅管)
尼龍絕緣平插式(半包)母端連接器(易進式銅管)

尼龍絕緣平插式(半包)母端連接器(易進式銅管)

產品描述
  • 編號：END1-2.8F5C〜END5-9.5FC
  • 絕緣材料：尼龍
  • 端子材質：青銅
  • 套管：銅套
  • 電鍍：錫
詢價
Nylon Insulated Female Lug(Double Crimp)
WIRE RANGE
A.W.G. mm²		ITEM

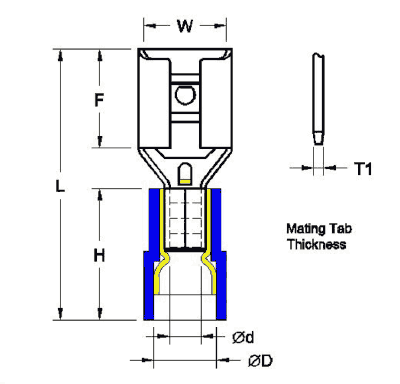

NO.		Dimensions (mm)Material Tab Thickness
WFLHØdØDT1
22-16
A.W.G.

0.5-1.5  mm²		 END1-2.8F5C 3.2 6.4 19.4 11.0 1.7 4.1 0.5
END1-2.8F8C 3.2 6.4 19.4 0.8
END1-4.8F5C 5.0 6.4 20.0 0.5
END1-4.8F8C 5.0 6.4 20.0 0.8
END1-5.2F5C 5.7 5.9 20.0 0.5
END1-5.2F8C 5.7 5.9 20.0 0.8
END1-6.3FC 6.6 7.8 22.0 0.8
END1-8FC 8.2 10.0 24.0 0.8
16-14
A.W.G.

1.5-2.5 mm²		 END2-2.8F5C 3.2 6.4 19.4 11.0 2.3 4.9 0.5
END2-2.8F8C 3.2 6.4 19.4 0.8
END2-4.8F5C 5.0 6.4 20.0 0.5
END2-4.8F8C 5.0 6.4 20.0 0.8
END2-5.2F5C 5.7 5.9 20.0 0.5
END2-5.2F8C 5.7 5.9 20.0 0.8
END2-6.3FC 6.6 7.8 22.0 0.8
END2-8FC 8.2 10.0 24.0 0.8
12-10
A.W.G.

4-6  mm²		 END5-6.3FC 6.6 7.8 24.0 13.0 3.4 6.7 0.8
END5-9.5FC 10.0 12.0 29.0 1.2
