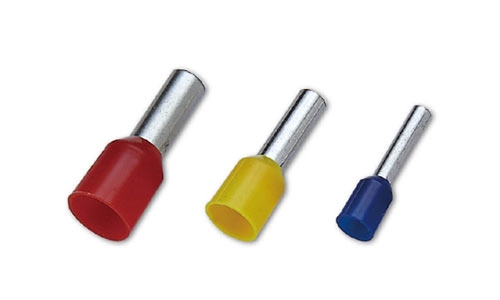

尼龍絕緣歐式端子(DIN46228/4)
| WIRE RANGE A.W.G. mm² | ITEM NO. | ITEM NO. | ITEM NO. | Dimensions (mm) | PACKING PCS | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| (T:French Color) | (W:German Color) | (DIN:DIN Color) | ØD1 | ØD2 | L1 | L2 | |||||
| 28 AWG 0.14 mm² |
LT001406-GY | GREY | 0.7 | 1.6 | 6.0 | 10.0 | 1,000 | ||||
| LT001408-GY | 8.0 | 12.0 | |||||||||
| 26 AWG 0.25 mm² |
LT002506-VI | VIOLET | LT002506-LB | LIGHT BLUE | 0.8 | 1.9 | 6.0 | 10.0 | 1,000 | ||
| LT002508-VI | LT002508-LB | 8.0 | 12.0 | ||||||||
| 24 AWG 0.34 mm² |
LT003406-PI | PINK | LT003406-TU | TURQOISE | 0.8 | 1.9 | 6.0 | 10.0 | 1,000 | ||
| LT003408-PI | LT003408-TU | 8.0 | 12.0 | ||||||||
| 22 AWG 0.5 mm² |
LT005006-W | WHITE | LT005006-OR | ORANGE | LT005006-W | WHITE | 1.0 | 2.6 | 6.0 | 12.0 | 500 |
| LT005008-W | LT005008-OR | LT005008-W | 8.0 | 14.0 | |||||||
| LT005010-W | LT005010-OR | LT005010-W | 10.0 | 16.0 | |||||||
| 20 AWG 0.75 mm² |
LT007506-BL | BLUE | LT007506-W | WHITE | LT007506-GY | GREY | 1.2 | 2.8 | 6.0 | 12.0 | 500 |
| LT007508-BL | LT007508-W | LT007508-GY | 8.0 | 14.0 | |||||||
| LT007510-BL | LT007510-W | LT007510-GY | 10.0 | 16.0 | |||||||
| LT007512-BL | LT007512-W | LT007512-GY | 12.0 | 18.0 | |||||||
| 18AWG 1.0 mm² |
LT010006-R | RED | LT010006-Y | YELLOW | LT010006-R | RED | 1.4 | 3.0 | 6.0 | 12.0 | 500 |
| LT010008-R | LT010008-Y | LT010008-R | 8.0 | 14.0 | |||||||
| LT010010-R | LT010010-Y | LT010010-R | 10.0 | 16.0 | |||||||
| LT010012-R | LT010012-Y | LT010012-R | 12.0 | 18.0 | |||||||
| 16 AWG 1.5 mm² |
LT015008-BK | BLACK | LT015008-R | RED | LT015008-BK | BLACK | 1.7 | 3.5 | 8.0 | 14.0 | 500 |
| LT015010-BK | LT015010-R | LT015010-BK | 10.0 | 16.0 | |||||||
| LT015012-BK | LT015012-R | LT015012-BK | 12.0 | 18.0 | |||||||
| LT015018-BK | LT015018-R | LT015018-BK | 18.0 | 24.0 | |||||||
| 14AWG 2.5 mm² |
LT025008-GY | GREY | LT025008-BL | BLUE | LT025008-BL | BLUE | 2.2 | 4.2 | 8.0 | 14.0 | 500 |
| LT025010-GY | LT025010-BL | LT025010-BL | 10.0 | 16.0 | |||||||
| LT025012-GY | LT025012-BL | LT025012-BL | 12.0 | 18.0 | |||||||
| LT025018-GY | LT025018-BL | LT025018-BL | 18.0 | 24.0 | |||||||
| 12 AWG 4.0 mm² |
LT040010-OR | ORANGE | LT040010-GY | GREY | LT040010-GY | GREY | 2.8 | 4.8 | 10.0 | 17.0 | 500 |
| LT040012-OR | LT040012-GY | LT040012-GY | 12.0 | 20.0 | |||||||
| LT040018-OR | LT040018-GY | LT040018-GY | 18.0 | 26.0 | |||||||
| 10AWG 6.0 mm² |
LT060012-GR | GREEN | LT060012-BK | BLACK | LT060012-Y | YELLOW | 3.5 | 6.3 | 12.0 | 20.0 | 500 |
| LT060018-GR | LT060018-BK | LT060018-Y | 18.0 | 26.0 | |||||||
| 8AWG 10 mm² |
LT100012-BR | BROWN | LT100012-IV | IVORY | LT100012-R | RED | 4.5 | 7.6 | 12.0 | 22.0 | 500 |
| LT100018-BR | LT100018-IV | LT100018-R | 18.0 | 28.0 | |||||||
| 6 AWG 16 mm² |
LT160012-IV | IVORY | LT160012-GR | GREEN | LT160012-BL | BLUE | 5.8 | 8.8 | 12.0 | 24.0 | 500 |
| LT160018-IV | LT160018-GR | LT160018-BL | 18.0 | 28.0 | |||||||
| 4AWG 25 mm² |
LT250016-BK | BLACK | LT250016-BR | BROWN | LT250016-Y | YELLOW | 7.3 | 11.2 | 16.0 | 30.0 | 500 |
| LT250018-BK | LT250018-BR | LT250018-Y | 18.0 | 32.0 | |||||||
| LT250022-BK | LT250022-BR | LT250022-Y | 22.0 | 36.0 | |||||||
| 2 AWG 35 mm² |
LT350016-R | RED | LT350016-BE | BEIGE | LT350016-R | RED | 8.3 | 12.7 | 16.0 | 30.0 | 500 |
| LT350018-R | LT350018-BE | LT350018-R | 18.0 | 32.0 | |||||||
| LT350025-R | LT350025-BE | LT350025-R | 25.0 | 39.0 | |||||||
| 1/10 AWG 50 mm² |
LT500020-BL | BLUE | LT500020-OL | OLIVE | LT500020-BL | BLUE | 10.3 | 15.0 | 20.0 | 36.0 | 500 |
| LT500025-BL | LT500025-OL | LT500025-BL | 25.0 | 40.0 | |||||||
| 2/0 AWG 70.0 mm² |
LT700021-Y | YELLOW | 13.5 | 16.0 | 21.0 | 37.0 | 100 | ||||
| 3/0 AWG 95 mm² |
LT950025-R | RED | 14.7 | 18.0 | 25.0 | 44.0 | 100 | ||||
| 4/0 AWG 120mm² |
LT120027-BL | BLUE | 16.7 | 20.0 | 27.0 | 48.0 | 100 | ||||
| 250/300 AWG 150 mm² |
LT150032-Y | YELLOW | 19.5 | 23.0 | 32.0 | 58.0 | 100 | ||||
