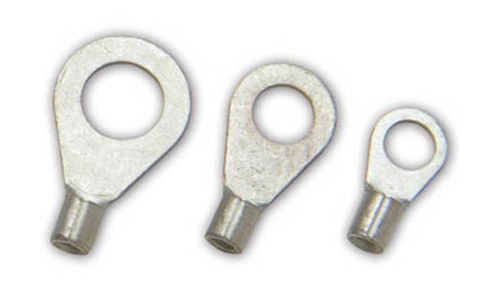

無絕緣DIN46234德規圓型焊接端子
| WIRE RANGE A.W.G. mm² | ITEM NO. | Stud Size | Dimensions (mm) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Metric | a | c | Ød1 | Ød2 | d3 | L | s | ||
| 22-16 A.W.G. 0.5-1.5 mm² |
DR2.5-1NB | 2.5 | 5.0 | 4.0 | 1.6 | 2.7 | 6.0 | 11.0 | 0.8 |
| DR3-1NB | 3 | 3.2 | 6.0 | 11.0 | |||||
| DR3.5-1NB | 3.5 | 3.7 | 6.0 | 11.0 | |||||
| DR4S-1NB | 4 | 4.3 | 7.0 | 11.0 | |||||
| DR4-1NB | 4 | 4.3 | 8.0 | 12.0 | |||||
| DR5S-1NB | 5 | 5.3 | 8.0 | 12.0 | |||||
| DR5-1NB | 5 | 5.3 | 10.0 | 13.0 | |||||
| DR6S-1NB | 6 | 6.5 | 10.0 | 13.0 | |||||
| DR6-1NB | 6 | 6.5 | 11.0 | 16.0 | |||||
| DR8-1NB | 8 | 8.4 | 14.0 | 17.0 | |||||
| 16-14 A.W.G. 1.5-2.5 mm² |
DR3-2.5NB | 3 | 5.0 | 4.5 | 2.3 | 3.2 | 6.0 | 11.0 | 0.8 |
| DR3.5-2.5NB | 3.5 | 3.7 | 6.0 | 11.0 | |||||
| DR4S-2.5NB | 4 | 4.3 | 6.8 | 11.0 | |||||
| DR4-2.5NB | 4 | 4.3 | 8.0 | 12.0 | |||||
| DR5S-2.5NB | 5 | 5.3 | 8.0 | 12.0 | |||||
| DR5-2.5NB | 5 | 5.3 | 10.0 | 14.0 | |||||
| DR6S-2.5NB | 6 | 6.5 | 10.0 | 14.0 | |||||
| DR6-2.5NB | 6 | 6.5 | 11.0 | 16.0 | |||||
| DR8-2.5NB | 8 | 8.4 | 14.0 | 17.0 | |||||
| DR10-2.5NB | 10 | 10.5 | 18.0 | 20.0 | |||||
| 12-10 A.W.G. 2.5-6 mm² |
DR4-6NB | 4 | 6.0 | 6.0 | 3.6 | 4.3 | 8.0 | 14.0 | 1.0 |
| DR5-6NB | 5 | 5.3 | 10.0 | 15.0 | |||||
| DR6-6NB | 6 | 6.5 | 11.0 | 16.0 | |||||
| DR8-6NB | 8 | 8.4 | 14.0 | 19.0 | |||||
| DR10-6NB | 10 | 10.5 | 18.0 | 21.0 | |||||
| DR12-6NB | 12 | 13.0 | 18.0 | 21.0 | |||||
| 8 A.W.G. 10 mm² |
DR5-10NB | 5 | 8.0 | 8.0 | 4.5 | 5.3 | 10.0 | 16.0 | 1.1 |
| DR6-10NB | 6 | 6.5 | 11.0 | 17.0 | |||||
| DR8-10NB | 8 | 8.4 | 14.0 | 20.0 | |||||
| DR10-10NB | 10 | 10.5 | 18.0 | 21.0 | |||||
| DR12-10NB | 12 | 13.0 | 22.0 | 23.0 | |||||
| 6 A.W.G. 16 mm² |
DR5-16NB | 5 | 10.0 | 10.5 | 5.8 | 5.3 | 11.0 | 20.0 | 1.2 |
| DR6-16NB | 6 | 6.5 | 11.0 | 20.0 | |||||
| DR8-16NB | 8 | 8.4 | 14.0 | 22.0 | |||||
| DR10-16NB | 10 | 10.5 | 18.0 | 24.0 | |||||
| DR12-16NB | 12 | 13.0 | 22.0 | 26.0 | |||||
| 4 A.W.G. 25 mm² |
DR5-25NB | 5 | 11.0 | 12.0 | 7.5 | 5.3 | 12.0 | 25.0 | 1.5 |
| DR6-25NB | 6 | 6.5 | 12.0 | 25.0 | |||||
| DR8-25NB | 8 | 8.4 | 16.0 | 25.0 | |||||
| DR10-25NB | 10 | 10.5 | 18.0 | 26.0 | |||||
| DR12-25NB | 12 | 13.0 | 22.0 | 31.0 | |||||
| DR16-25NB | 16 | 17.0 | 28.0 | 35.0 | |||||
| 2 A.W.G. 35 mm² |
DR6-35NB | 6 | 12.0 | 15.0 | 9.0 | 6.5 | 15.0 | 26.0 | 1.6 |
| DR8-35NB | 8 | 8.4 | 16.0 | 26.0 | |||||
| DR10-35NB | 10 | 10.5 | 18.0 | 27.0 | |||||
| DR12-35NB | 12 | 13.0 | 22.0 | 31.0 | |||||
| DR16-35NB | 16 | 17.0 | 28.0 | 36.0 | |||||
| 1/0 A.W.G. 50 mm² |
DR6-50NB | 6 | 16.0 | 17.0 | 11.0 | 6.5 | 18.0 | 34.0 | 1.8 |
| DR8-50NB | 8 | 8.0 | 18.0 | 34.0 | |||||
| DR10-50NB | 10 | 10.5 | 18.0 | 34.0 | |||||
| DR12-50NB | 12 | 13.0 | 22.0 | 36.0 | |||||
| DR16-50NB | 16 | 17.0 | 28.0 | 40.0 | |||||
| 2/0 A.W.G. 70 mm² |
DR6-70NB | 6 | 18.0 | 21.0 | 13.0 | 6.5 | 22.0 | 38.0 | 2.0 |
| DR8-70NB | 8 | 8.4 | 22.0 | 38.0 | |||||
| DR10-70NB | 10 | 10.5 | 22.0 | 38.0 | |||||
| DR12-70NB | 12 | 13.0 | 22.0 | 38.0 | |||||
| DR16-70NB | 16 | 17.0 | 28.0 | 42.0 | |||||
| 3/0 A.W.G. 95 mm² |
DR8-95NB | 8 | 20.0 | 23.0 | 15.0 | 8.4 | 24.0 | 42.0 | 2.5 |
| DR10-95NB | 10 | 10.5 | 24.0 | 42.0 | |||||
| DR12-95NB | 12 | 13.0 | 24.0 | 42.0 | |||||
| DR16-95NB | 16 | 17.0 | 28.0 | 44.0 | |||||
| 4/0 A.W.G. 120 mm² |
DR8-120NB | 8 | 22.0 | 24.0 | 16.5 | 8.4 | 24.0 | 44.0 | 3.0 |
| DR10-120NB | 10 | 10.5 | 24.0 | 44.0 | |||||
| DR12-120NB | 12 | 13.0 | 24.0 | 44.0 | |||||
| DR16-120NB | 16 | 17.0 | 28.0 | 48.0 | |||||
| 250/300MCM A.W.G. 150 mm² |
DR10-150NB | 10 | 24.0 | 28.0 | 19.0 | 10.5 | 30.0 | 50.0 | 3.2 |
| DR12-150NB | 12 | 13.0 | 30.0 | 50.0 | |||||
| DR16-150NB | 16 | 17.0 | 30.0 | 50.0 | |||||
| 300/350MCM A.W.G. 185 mm² |
DR10-185NB | 10 | 28.0 | 33.0 | 21.0 | 10.5 | 36.0 | 50.0 | 3.5 |
| DR12-185NB | 12 | 13.0 | |||||||
| DR16-185NB | 16 | 17.0 | |||||||
| 400MCM A.W.G. 240 mm² |
DR10-240NB | 10 | 32.0 | 36.0 | 23.5 | 10.5 | 38.0 | 56.0 | 4.0 |
| DR12-240NB | 12 | 13.0 | |||||||
| DR16-240NB | 16 | 17.0 | |||||||
