無絕緣歐式端子(DIN 46228/1)
  • 無絕緣歐式端子(DIN 46228/1)
無絕緣歐式端子(DIN 46228/1)
無絕緣歐式端子(DIN 46228/1)

無絕緣歐式端子(DIN 46228/1)

產品描述
  • 編號：LN005006〜LN150038
  • 端子材質：銅
  • 電鍍：錫
詢價

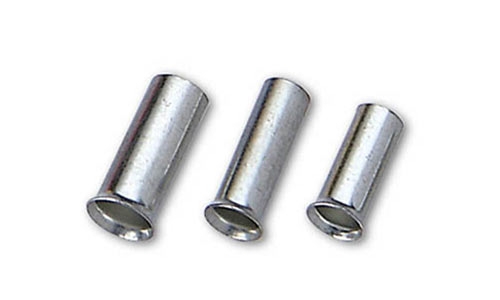

Non-Insulated Cord End Sleeves
WIRE RANGE
A.W.G. mm²		ITEM
NO.		Dimensions (mm)PACKING PCS
ØD1ØD2L
22
AWG
0.5  mm² 		 LN005006 1.0 1.9 6.0 1,000
LN005008 8.0
LN005010 10.0
20
AWG
0.75 mm² 		 LN007506 1.2 2.2 6.0 1,000
LN007508 8.0
LN007510 10.0
18
AWG
1.0  mm²		 LN010006 1.4 2.4 6.0 1,000
LN010008 8.0
LN010010 10.0
LN010012 12.0
16
AWG
1.5  mm²		 LN015007 1.7 2.8 7.0 1,000
LN015008 8.0
LN015010 10.0
LN015012 12.0
14
AWG
2.5 mm²		 LN025007 2.2 3.4 7.0 1,000
LN025008 8.0
LN025010 10.0
LN025012 12.0
12
AWG
4.0 mm²		 LN040008 2.8 4.0 8.0 1,000
LN040009 9.0
LN040010 10.0
LN040012 12.0
LN040015 15.0
LN040018 18.0
10
AWG
6.0  mm²		 LN060010 3.5 4.7 10.0 1,000
LN060012 12.0
LN060015 15.0
LN060018 18.0
8
AWG
10.0 mm² 		 LN100012 4.5 5.8 12.0 1,000
LN100015 15.0
LN100018 18.0
6
AWG
16 mm²		 LN160012 5.8 7.5 12.0 1,000
LN160015 15.0
LN160018 18.0
4
AWG
25 mm² 		 LN250016 7.3 9.5 16.0 1,000
LN250018 18.0
LN250022 22.0
2
AWG
35 mm² 		 LN350016 8.3 10.5 16.0 1,000
LN350018 18.0
LN350020 20.0
LN350025 25.0
1/10
AWG
50 mm² 		 LN500018 10.3 13.0 18.0 1,000
LN500020 20.0
LN500025 25.0
2/0
AWG
70 mm²		 LN700022 13.5 15.5 22.0 500
LN700025 25.0
3/0
AWG
95  mm²		 LN950025 14.7 17 25.0 500
LN950032 32.0
4/0
AWG
120 mm²		 LN120030 16.7 19 30.0 500
LN120032 32.0
LN120034 34.0
250/300
AGW
150  mm² 		 LN150032 19.5 21.5 32.0 500
LN150038 38.0
