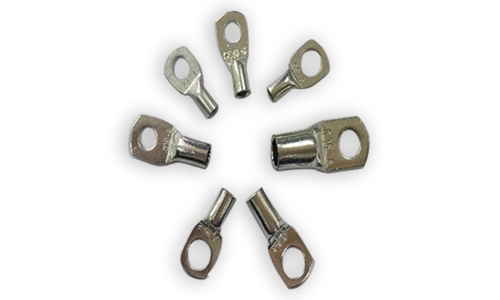

WIRE RANGE A.W.G. mm² | ITEM NO. | Dimensions (mm) | ||||||
---|---|---|---|---|---|---|---|---|
Ød2 | B | L | E | F | Ød | ØD | ||
16-14 A.W.G 1.5-2.5 mm² |
CT2.5-4 | 4.3 | 8.0 | 18.0 | 7.0 | 7.0 | 2.4 | 3.9 |
CT2.5-5 | 5.3 | 8.0 | 18.0 | |||||
CT2.5-6 | 6.4 | 10.0 | 19.0 | |||||
14-12 A.W.G 2.5-4 mm² |
CT4-5 | 5.3 | 10.0 | 20.0 | 7.0 | 8.0 | 2.8 | 4.5 |
CT4-6 | 6.4 | 10.0 | 20.0 | |||||
12-10 A.W.G 4-6 mm² |
CT6-5 | 5.3 | 10.0 | 23.0 | 9.0 | 9.0 | 3.8 | 5.5 |
CT6-6 | 6.4 | 10.0 | 23.0 | |||||
CT6-8 | 8.4 | 12.6 | 25.0 | |||||
8 A.W.G 10 mm² |
CT10-6 | 6.4 | 10.0 | 25.0 | 9.0 | 10.0 | 4.5 | 6.2 |
CT10-8 | 8.4 | 12.6 | 26.0 | |||||
6 A.W.G 16 mm² |
CT16-5 | 5.3 | 10.0 | 30.0 | 12.0 | 11.0 | 5.4 | 7.1 |
CT16-6 | 6.4 | 10.0 | 30.0 | |||||
CT16-8 | 8.4 | 12.6 | 30.0 | |||||
4 A.W.G 25 mm² |
CT25-6 | 6.4 | 12.6 | 30.0 | 12.0 | 11.0 | 6.8 | 8.8 |
CT25-8 | 8.4 | 12.6 | 30.0 | |||||
CT25-10 | 10.5 | 15.0 | 32.0 | 12.5 | ||||
2 A.W.G 35 mm² |
CT35-6 | 6.4 | 15.0 | 35.0 | 13.0 | 14.0 | 8.2 | 10.6 |
CT35-8 | 8.4 | 15.0 | 35.0 | |||||
CT35-10 | 10.5 | 15.0 | 35.0 | |||||
CT35-12 | 13.0 | 18.6 | 36.8 | 12.0 | ||||
1/0 A.W.G 50 mm² |
CT50-8 | 8.4 | 18.0 | 43.0 | 16.0 | 17.0 | 9.5 | 12.4 |
CT50-10 | 10.5 | 18.0 | ||||||
CT50-12 | 13.0 | 19.0 | ||||||
2/0 A.W.G 70 mm² |
CT70-8 | 8.4 | 21.0 | 50.0 | 18.0 | 20.0 | 11.2 | 14.7 |
CT70-10 | 10.5 | 21.0 | ||||||
CT70-12 | 13.0 | 21.0 | ||||||
3/0 A.W.G 95 mm² |
CT95-10 | 10.5 | 25.5 | 55.0 | 20.0 | 22.0 | 13.5 | 17.4 |
CT95-12 | 13.0 | 25.5 | ||||||
4/0 A.W.G 120 mm² |
CT120-10 | 10.5 | 28.0 | 60.0 | 22.0 | 24.0 | 15.0 | 19.4 |
CT120-12 | 13.0 | 28.0 | ||||||
CT120-14 | 15.0 | 28.0 | ||||||
CT120-16 | 17.0 | 28.0 | ||||||
250/300 MCM A.W.G 150 mm² |
CT150-12 | 13.0 | 30.5 | 69.0 | 26.0 | 27.0 | 16.5 | 21.2 |
CT150-14 | 15.0 | 30.5 | ||||||
CT150-16 | 17.0 | 30.5 | ||||||
300/350 MCM A.W.G 185 mm² |
CT185-12 | 13.0 | 34.0 | 78.0 | 32.0 | 29.0 | 18.5 | 23.5 |
CT185-14 | 15.0 | 34.0 | ||||||
CT185-16 | 17.0 | 34.0 | ||||||
400/450 MCM A.W.G 240 mm² |
CT240-14 | 15.0 | 38.5 | 92.0 | 38.0 | 34.0 | 21.0 | 26.5 |
CT240-16 | 17.0 | 38.5 | ||||||
CT240-18 | 19.0 | 38.5 | ||||||
500 MCM A.W.G 300 mm² |
CT300-14 | 15.0 | 43.5 | 101.0 | 42.0 | 37.0 | 23.5 | 30.0 |
CT300-16 | 17.0 | 43.5 | ||||||
CT300-18 | 19.0 | 43.5 | ||||||
600/750 MCM A.W.G 400 mm² |
CT400-16 | 17.0 | 53.0 | 114.0 | 44.0 | 44.0 | 28.5 | 36.5 |
CT400-18 | 19.0 | 53.0 | ||||||
CT400-20 | 21.0 | 53.0 | ||||||
800/1000 MCM A.W.G 500 mm² |
CT500-16 | 17.0 | 56.0 | 124.0 | 48.0 | 48.0 | 30.0 | 39.0 |
CT500-18 | 19.0 | 56.0 | ||||||
CT500-20 | 21.0 | 56.0 | ||||||
1000/1250MCM A.W.G 625 mm² |
CT625-16 | 17.0 | 63.5 | 130.0 | 52.0 | 51.0 | 34.5 | 44.0 |
CT625-18 | 19.0 | 63.5 | ||||||
CT625-20 | 21.0 | 63.5 |
