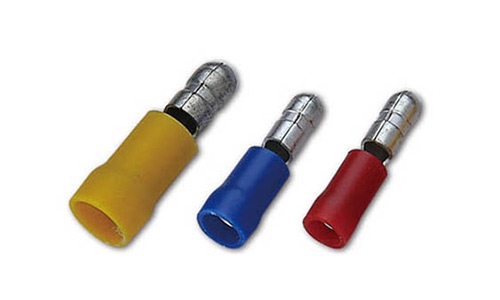

PVC Insulated Bullet Connectors(Double Crimp)
  • PVC Insulated Bullet Connectors(Double Crimp)
PVC Insulated Bullet Connectors(Double Crimp)
PVC Insulated Bullet Connectors(Double Crimp)

PVC Insulated Bullet Connectors(Double Crimp)

Product Description
  • NO.VG1-4MC ~ VG5-5MC
  • Insulation Material: Vinyl(PVC)
  • Terminal Material: Brass
  • Metallic Sleeve: Copper
  • Plating： TIN

Specification download

VG-MC-PDF.pdf
Add to Inquiry Cart
PPVC Insulated Bullet Connectors(Double Crimp)
WIRE RANGE
A.W.G.   mm²		ITEM

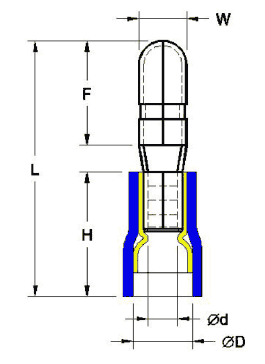

NO.		Dimensions (mm)
ØWFLHØdØD
22-16 A.W.G.
0.5-1.5  mm²		 VG1-4MC 4.0 8.7 21.5 10.5 1.7 4.1
16-14 A.W.G.
1.5-2.5 mm²		 VG2-4MC 4.0 8.7 21.5 10.5 2.3 4.9
VG2-5MC 5.0 8.9
12-10 A.W.G.
4-6 mm²		 VG5-5MC 5.0 8.9 24.0 13.0 3.4 6.7
