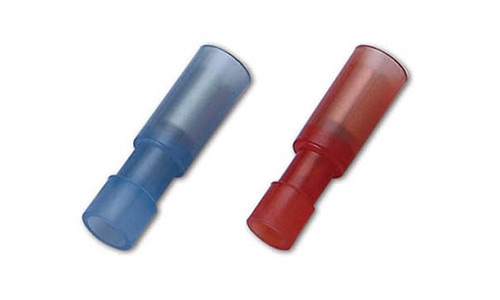

Nylon Fully Insulated Receptacle Connector(Easy Entry)
  • Nylon Fully Insulated Receptacle Connector(Easy Entry)
Nylon Fully Insulated Receptacle Connector(Easy Entry)
Nylon Fully Insulated Receptacle Connector(Easy Entry)

Nylon Fully Insulated Receptacle Connector(Easy Entry)

Product Description
  • NO.LNG1-4F,LNG2-4F
  • Insulation Material: Nylon
  • Terminal Material: Brass
  • Plating： TIN

Specification download

LNG-PDF.pdf
Add to Inquiry Cart
Nylon Fully Insulated Receptacle Connector(Easy Entry)

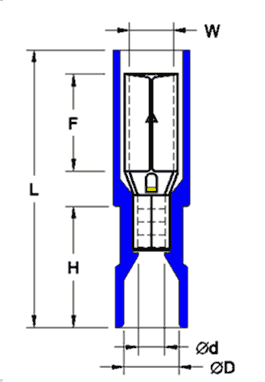

WIRE RANGE
A.W.G.   Mm²		ITEM
NO.		Dimensions (mm)
ØWFLHØdØD
22-16 A.W.G.
0.5-1.5 mm²		 LNG1-4F 4.0 8.7 25.2 11.0 1.7 4.2
16-14 A.W.G.
1.5-2.5  mm²		 LNG2-4F 4.0 8.7 25.2 11.0 2.3 5.0
