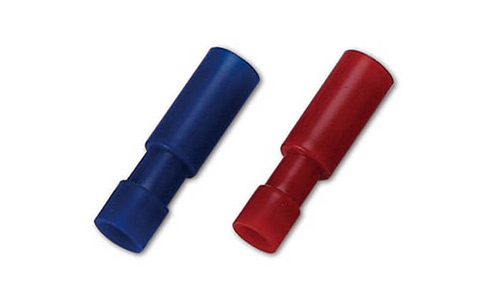

Nylon Fully Insulated Receptacle Connector(Double Cirmp)
  • Nylon Fully Insulated Receptacle Connector(Double Cirmp)
Nylon Fully Insulated Receptacle Connector(Double Cirmp)
Nylon Fully Insulated Receptacle Connector(Double Cirmp)

Nylon Fully Insulated Receptacle Connector(Double Cirmp)

Product Description
  • NO.LNG1-4FC,LNG2-4FC
  • Insulation Material: Nylon
  • Terminal Material: Brass
  • Metallic Sleeve: Copper
  • Plating： TIN

Specification download

LVG-FC-PDF.pdf
Add to Inquiry Cart
Nylon Fully Insulated Receptacle Connector(Double Cirmp)
WIRE RANGE
A.W.G. mm²		ITEM

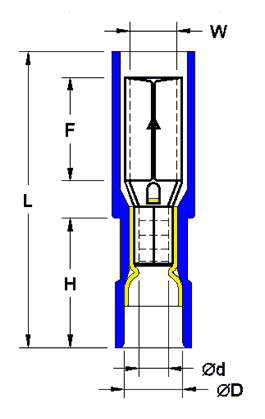

NO.		Dimensions (mm)
ØWFLHØdØD
22-16 A.W.G.
0.5-1.5  mm²		 LNG1-4FC 4.0 8.7 25.2 11.0 1.7 4.2
16-14 A.W.G.
1.5-2.5  mm²		 LNG2-4FC 4.0 8.7 25.2 11.0 2.3 5.0
