Nylon Insulated DIN46237 Ring Terminals(Double Crimp)
  • Nylon Insulated DIN46237 Ring Terminals(Double Crimp)
Nylon Insulated DIN46237 Ring Terminals(Double Crimp)
Nylon Insulated DIN46237 Ring Terminals(Double Crimp)

Nylon Insulated DIN46237 Ring Terminals(Double Crimp)

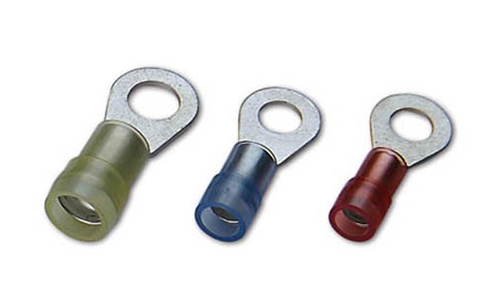

Product Description
  • NO.ENDR2.5-1C ~ ENDR12-6C
  • Insulation Material: Nylon
  • Terminal Material: Copper
  • Plating： TIN

Specification download

ENDR-C-PDF.pdf
Add to Inquiry Cart
Nylon Insulated DIN46237 Ring Terminals(Double Crimp)
WIRE RANGE
A.W.G. mm²		ITEM
NO.		Stud SizeDimensions (mm)

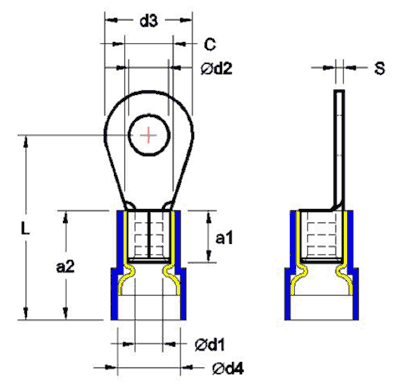

MetricØd1a1a2CØd2d3Ød4LS
22-16
A.W.G.

0.5-1.5  mm²		 ENDR2.5-1C 2.5 1.6 5.0 11.0 4.0 2.7 6.0 4.5 17.0 0.8
ENDR3-1C 3 3.2 6.0 17.0
ENDR3.5-1C 3.5 3.7 6.0 17.0
ENDR4S-1C 4 4.3 7.0 17.0
ENDR4-1C 4 4.3 8.0 18.0
ENDR5S-1C 5 5.3 8.0 18.0
ENDR5-1C 5 5.3 10.0 19.0
ENDR6S-1C 6 6.5 10.0 19.0
ENDR6-1C 6 6.5 11.0 22.0
ENDR8-1C 8 8.4 14.0 23.0
16-14
A.W.G.

1.5-2.5  mm²		 ENDR3-2.5C 3 2.3 5.0 11.0 4.5 3.2 6.0 5.0 17.0 0.8
ENDR3.5-2.5C 3.5 3.7 6.0 17.0
ENDR4S-2.5C 4 4.3 6.8 17.0
ENDR4-2.5C 4 4.3 8.0 18.0
ENDR5S-2.5C 5 5.3 8.0 18.0
ENDR5-2.5C 5 5.3 10.0 20.0
ENDR6S-2.5C 6 6.5 10.0 20.0
ENDR6-2.5C 6 6.5 11.0 22.0
ENDR8-2.5C 8 8.4 14.0 23.0
ENDR10-2.5C 10 10.5 18.0 26.0
12-10
A.W.G.

2.5-6 mm²		 ENDR4-6C 4 3.6 6.0 13.0 6.0 4.3 8.0 6.7 21.0 1.0
ENDR5-6C 5 5.3 10.0 22.0
ENDR6-6C 6 6.5 11.0 23.0
ENDR8-6C 8 8.4 14.0 26.0
ENDR10-6C 10 10.5 18.0 28.0
ENDR12-6C 12 13.0 18.0 28.0
